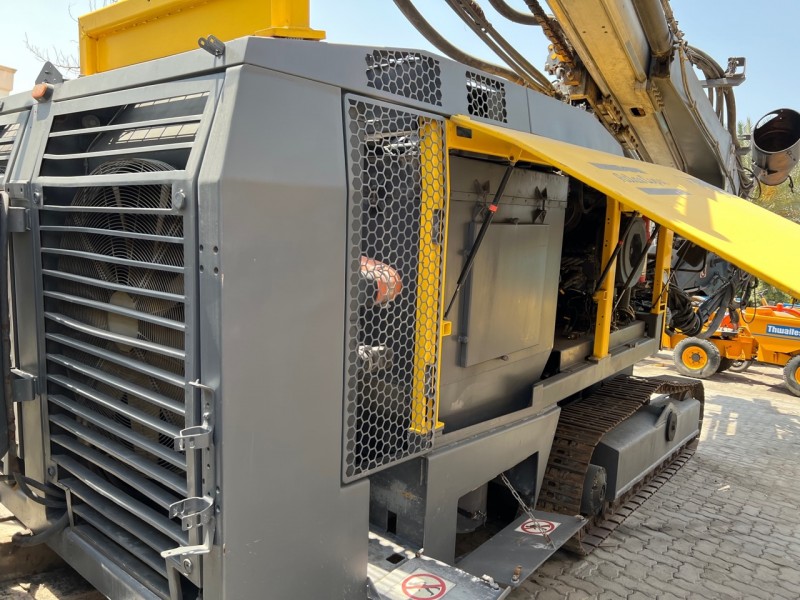

2015 ATLASCOPCO SMARTROC D60 DTH SURFACE DRILL RIG FOR QUARRYING ,MINING AND CONSTRUCTION

The new efficient SmartROC D60 consistently delivers high-quality blast holes with accuracy and precision. It is loaded with smart features such as automated drilling and rod handling. The automation-ready platform also includes an Auto Feed Fold option. With a single action, the Auto Feed Fold enables the operator to dump the feed for tramming or position it ready for drilling. This also comes in handy when operating one or more drill rigs remotely with the BenchREMOTE option. The extra long feed with 8 meter pipes makes it possible to drill 16 m production holes with just one rod-adding. All these features and flexibility are packed in a rig which is economical to run due to the intelligent control of the compressor and engine rpm. The SmartROC D60 also uses 300 liters less hydraulic oil than previous versions and features fewer hoses and pumps. This helps to further reduce costs and makes servicing easier, whilst increasing sustainability and reducing the environmental impact of the rig.

The SmartROC D60 is controlled via an advanced rig control system displayed on a touch screen inside the comfortable, air-conditioned FOPS and ROPS-certified cabin. It presents everything from drilling parameters to real-time Measure While Drilling data (MWD).

A SmartROC rig from Epiroc can significantly raise quality across the whole operation.

Main application area

Mining ; Quarrying

Drilling method: Down-the-hole

Hole diameter: 110 mm - 178 mm

Product family: SmartROC

Cabin: Yes

Rock drill/ DTH hammer size: 4" ; 5" ; 6"

Rotary head: DHR6 H 45 ; DHR6 H 56 ; DHR6 H 68 ; DHR6 H 78

Maximum hole depth: 56 m

Engine: 354 kW

Air capacity (FAD): 405 l/s

Transport dimensions:

Height: 3 500 mm

Length:12 400 mm

Width: 2 500 mm

Weight: 22 600 kg
