TRIPLEX PUMP-CAT PUMP

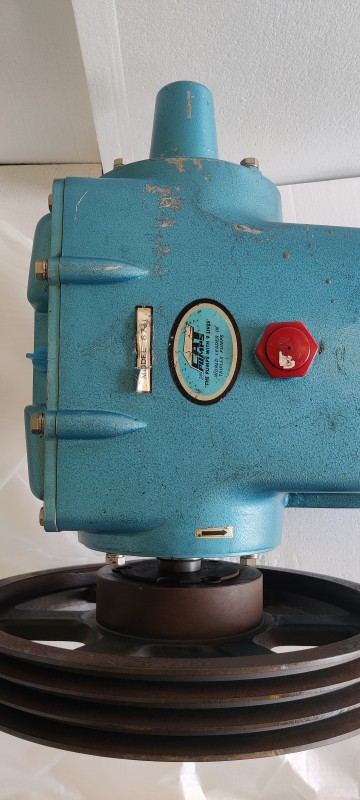

CAT PUMPS 6761 WITH 60 FRAME PLUNGER PUMP
CAT PUMPS 6761 WITH 60 FRAME PLUNGER PUMP
APPLICATION: FIRE & RESCUE PUMP AND OTHERS.
Features:
- Triplex plunger design
- Special ported inlet manifold
- V-Packings are completely lubricated
- Inlet and discharge valve assemblies interchange
- Oil bath crankcase
- Close tolerance concentricity of the ceramic plunger
- Precision design 316 stainless steel valves and seats
- Die cast aluminum crankcase
- Chrome-moly crankshaft
- Oversized crankshaft bearings
Specifications:
- Flow: 60 GPM
- Pressure range: 100 to 1200 PSI
- Inlet pressure range: Flooded to 50 PSI
- RPM: 520 RPM
- Bore: 2.165"
- Stroke: 2.579"
- Crankcase capacity: 10 Qts.
- Max. liquid temperature: 140°F
- Inlet ports (2): 2" NPTF
- Discharge Ports (2): 1-1/4" NPTF
- Shaft Diameter: 1.772"
- Weight: 335 lbs
- Dimensions: 30.71 x 24.37 x 12.44"
